DESCRIPTION
|
Product list
Model Number Description

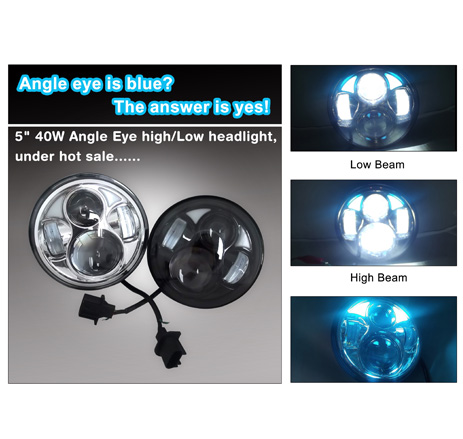

Jeep Wrangler/36v 9-36v LED High Low Headlight
Features& Benefits
Hi beam 37W,3700 Effective Lumens（four lights up 3700lm),low beam 30W at 2800lumens . Available in a 9-36v DC configuration
. This is a high low beam configuration Available with your choice of chrome or black reflector
. Durable polycarbonate lens stands up to harsh environmental conditions
. Rugged solid LEDs mean never having to replace another bulb again!

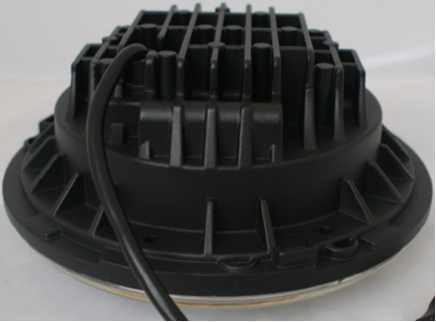

. Die-cast aluminum bousing provides maximum protection
. 4pcs of 12W Cree LEDs
General Specifications
Lens Material: Polycarbonate
Housing Material: Die-Cast Aluminum
Mounting: Replaces PAR56 headlights
Mating connector: AMP(#172615-2)
Color temperature: 6500-7000k
Anti-flicker wire harness
|
Technical Specifications
Input:DC9-36V
High Beam 3.10AMPS@12V DC
Low Beam 2.50AMPS@12V DC
High Beam 1.50AMPS@24V DC
Low Beam1.30AMPS@24V DC
Row Lumen Output:4800LM
Effective Lumen Output:3700LMs
Applications
Agricultural construction Forestry
Industrial Lawn&Garden Military
Off-Highway On-Highway Specialty Trucks
Utility Fire&Rescue Law Enforcement
Mining Recreational

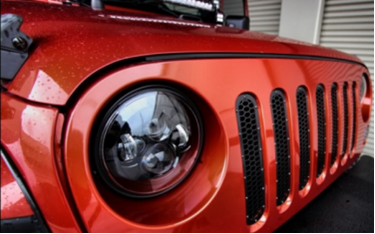

Exactly fit for
1955-1983 Jeep Cj-5
1976-1986 Jeep Cj-7
1981-1985 Jeep CJ-8
1997-2006 Jeep Wrangler(TJ)
2007-2014 Jeep Wrangler(JK）
1992-2006 HummerH1
2003-2009 HummerH2
Harley Davidson motoycycle etc...
Truck,off-road vehicle...
"Mercesdes Benz G"
other car with 7" round configuration
|

|
6500K low beam
6500K high beam
4000K low beam
4000 K high beam
|
